EMU BLACK

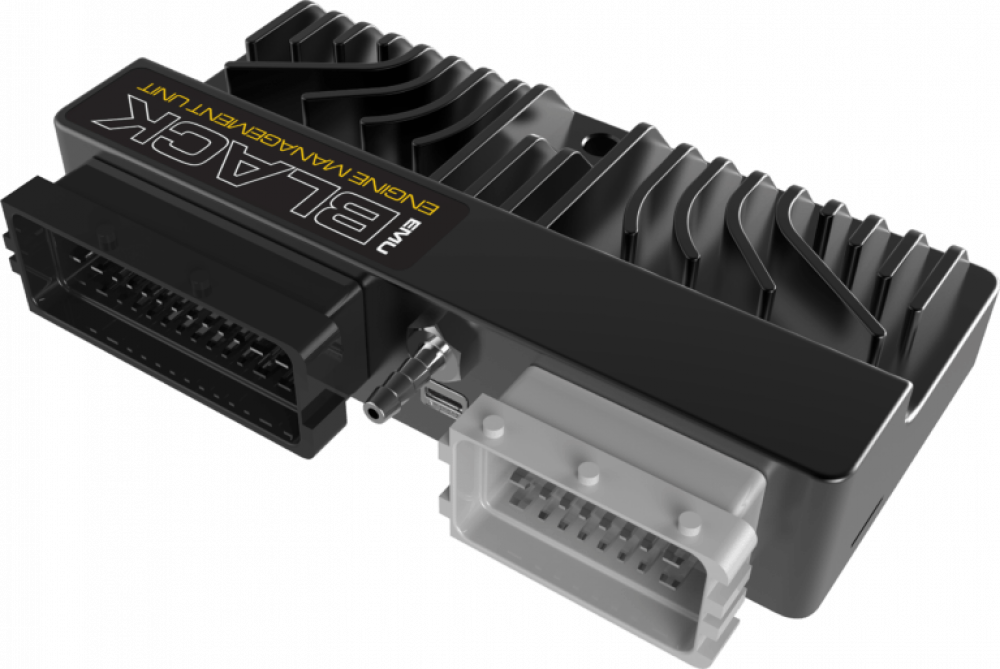

The EMU Black is a class-leading, stand-alone engine management system, designed to operate the most advanced and complex engines available. It is a successor of our proven system, EMU. Throughout EMU’s lifetime we collected lots of data that allows us to substantially improve the device hardware and software.

EMU Black targets race cars, road cars, motorcycles, boats, and stationary engine applications.

The EMU Black controls fueling, ignition and auxiliary systems on 1-12 cylinder engines including those with drive-by-wire throttles and VVT.

It can drive up to 6 passive or 12 smart coils directly and does not require external amplifier/power modules to achieve this. Sophisticated drive-by-wire strategies provide a wide range of throttle control along with advanced plausibility (fault/error) checking for safety.

Free, easy to install firmware upgrades further improve system capabilities (e.g. new strategies, trigger patterns, CAN data streams).

SPECIFICATION

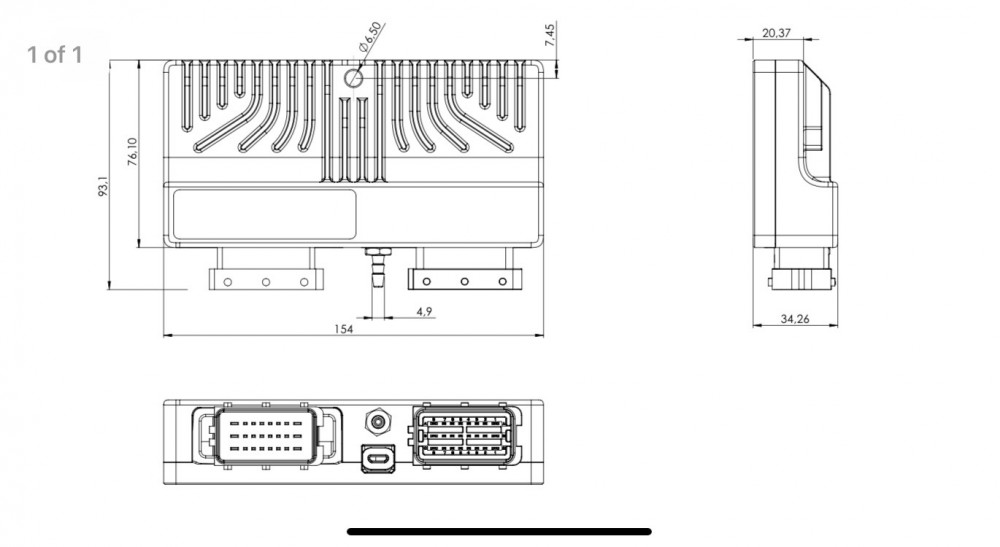

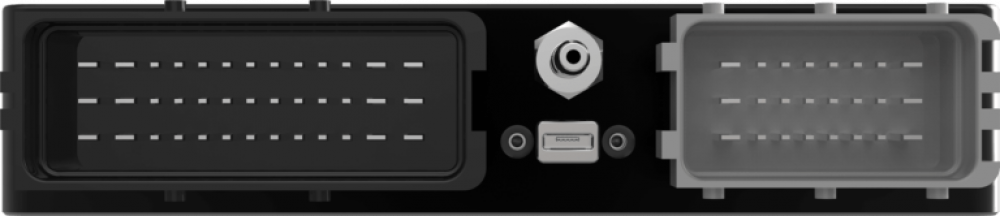

GENERALTemperature rangeAECQ100 GRADE2 (-40 to +105˚C)Reverse battery protectionYes, internalOperating voltage6-22V, immunity to transients according to ISO 7637EnclosureIP 60, custom CNC machined aluminiumSize (mm) and weight(g)150x72x31, 390Connectors1 x 24, 1 x 39 FCI Automotive connectorPC communicationUSB (with PC client software), serial, CANOUTPUTSInjector outputs6 protected outputs 5A, low sideIgnition outputs6 outputs 7A(15A peak) (passive & active coils supported)Aux outputs6 protected outputs 5A, low sideOther outputsFull bridge up to 7A, can be used as separate outputs or 2 H-BridgesWBO heaterProtected low side up to 5ACommunicationSerial, CAN BUS 2.0BINPUTSAnalog inputs9 inputs, resolution 10Bits, 0-5V (protected)EGT inputs2 for K-Type thermocoupleKnock sensor2 inputsOxygen sensorLSU 4.2, LSU 4.9 or Narrow bandTrigger inputs3 (primary, 2 cams) Hall/ VR software selectableVSS1 (Hall / VR)Flex Fuel SensorYesSwitch inputs3 inputs, switched to groundSENSORSTemperature sensorsIAT, CLT, Oil temperature, AC evap temperaturePressure sensorMAP, Oil pressure, Fuel pressure (user defined characteristic), AC pressure sensor, Back pressureOxygen sensorLSU 4.2 or 4.9 (built in controller), Narrow band, external WBO controllersSpeedVehicle speed sensor (VR/HALL), Gear sensor (sensor, calculated)FUELINGInjectorsUp to 8 HiZ injectors (sequential)Injection angle control0-720 deg, start or end of injectionsBattery compensationUser defined, wizard for popular injectorsFueling strategiesVE based speed density, Alpha NAir charge temp.Based on IAT and CLTVE table2 tables 16×20 (Load x RPM), resolution of 0.1%Individual cylinder trimYesStaged injectionYesAdditional correctionOxygen sensor corrections, EGT correction (per cylinder), BARO, TPS vs MAP, TPS vs RPM, Warmup, Nitrous, LC, ALS, ASE, Fuel pressure, Knock sensorLambda based real time correctionUsing Lambda target tableAcc. / Deceleration enrichmentYesIGNITIONIgnition outputs6 for passive and active coils (software selectable)Supported triggersN-1, N-2, N-3, N+1, Multitooth, Subaru triggers, Nissan trigger, Lotus Elise, Audi trigger, Renault Clio Wiliams / Alpine, Colt 1.5CZ, WranglerIgnition angle table2 tables 16×20 (Load x RPM), resolution of 0.5 DegPer cylinder trimYesDwell time battery compensationUsed defined, wizard for popular coilsOdd fire compatibilityApplication dependentAdditional correctionCLT, IAT, TPS vs MAP, Nitrous, Idle, Knock sensor, LC, Pit limiter, ALS, Flat shift, Timers, Acc. enrichmentKNOCK SENSINGChannels2Resonant frequency range1-20kHz, 3rd order AAFSamplingIgnition event driven, knock windowActionsIgnition retard, fuel enrichment, dashboard indicationIDLE CONTROLControl typePWM solenoids (2,3 wires), drive by wire, stepper motors (bi and unipolar), ignition cut, fuel cutControl strategyOpen / Close loop , ignition angle controlVE correctionYes, for Alpha-NCorrectionsAC clutch, coolant fan, analog inputBOOST CONTROLBoost ref and target tables2 sets 10×10 (TPS vs RPM)Control strategiesOpen / Closed loop (PID based)CorrectionsGear, VSS, IAT, EGTDRIVE BY WIREControl strategyAdvanced 3D PID + static friction compensationSupported throttlesAll with DC motor and current requirement lower than 6.5AWizard for 28 popular electronic throttles

PPS to throttle position characteristic3D tableBLIP supportYesALS supportYesTRACTION CONTROLTC strategyDelta RPM, gear compensationTorque reductionSpark cut using 3D table (16×20)Sensitivity control10 position rotary switchVARIABLE VALVE TIMINGSupported systemsVVTi, MiVec, VANOS, Double VanosNumber of camshafts2Control strategyPID based closed loop, CAM angle target tables 12×12FLEX FUELEthanol content measurementYesFuel temperature measurementYesTables blendingVE, IGN, Lambda/AFR, Boost, Cranking fuel, ASE, WarmupFuel temperature PW correctionYesSPORTALS2 independent ALS setting, DBW supportShift lightPer gear shift lightLaunch controlYesGear cutYes (Open loop), DBW blip supportedSource: Switch, load cell, CAN

Pit limiterYesRolling anti lagYesENGINE PROTECTIONFail safe values for critical sensorsYesDashboard indication of failuresYes, user definedOver temperature engine protectionYes (oil and coolant), user defined, RPM limitLow oil pressure protectionYes, user defined, shut offFuel pressure protectionYes, fuel dose compensation, RPM limit, engine shut offHigh exhaust temperatureAlarm, per cylinder fuel trim, boost limitCAN BUSCAN standard2.0B 125, 250, 500, 1000 kbpsSupported CAN DashesECUMASTER, Motec M800 Set 1, Haltech E8 E11v2, Pectel SQ 6, AEMSupported OEM CAN streamsBMW E46, Citroen C2, Mazda RX8, Ford ST, Polaris RZR, Mini Cooper R53, Fiat 500, Renault Clio, Lotus, Ford Fiesta, Ford ST, EVO X (AYC support)OTHERUnused injection outputs can be used as AUX outputYesOutput functionsFuel pump, coolant fan, parametric outputs, nitrous control, PWM 3D table output, AC clutch, main relay, speedometer, tachometerPassword protectionYes, 2 levelsTimersFuel, Ignition, Boost, timers controlled by virtual outputsSerial dashboard supportAIM, RaceTechnologyAutotuneYesBuilt in trigger scopeYesLoggingReal time logging to PC computer, logging on external loggers (serial / CAN)
