علبة فيوز بطارية ماقا (MEGA) تتحمل 500 امبير
0101498
fuse holder specifically designed for MTA's Mega line of bolt-down fuses will also work with other bolt-down fuses with mounting holes 50.8MM between centers.

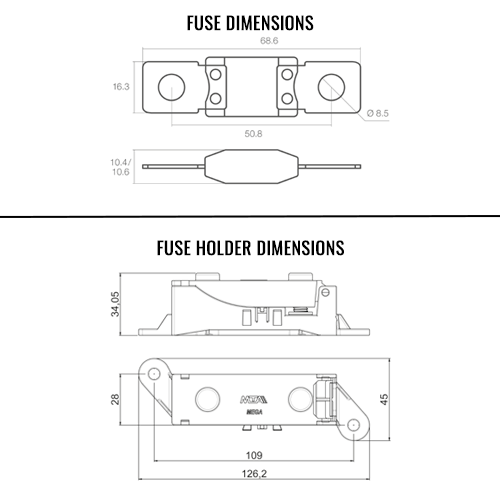

NOTE: This fuse holder will not work with MEGACOMPACT fuses. Please see the dimensions below as well as the datasheet.
- Fits all MEGA series fuses from 100-500A
- Extremely high-quality fuse holder

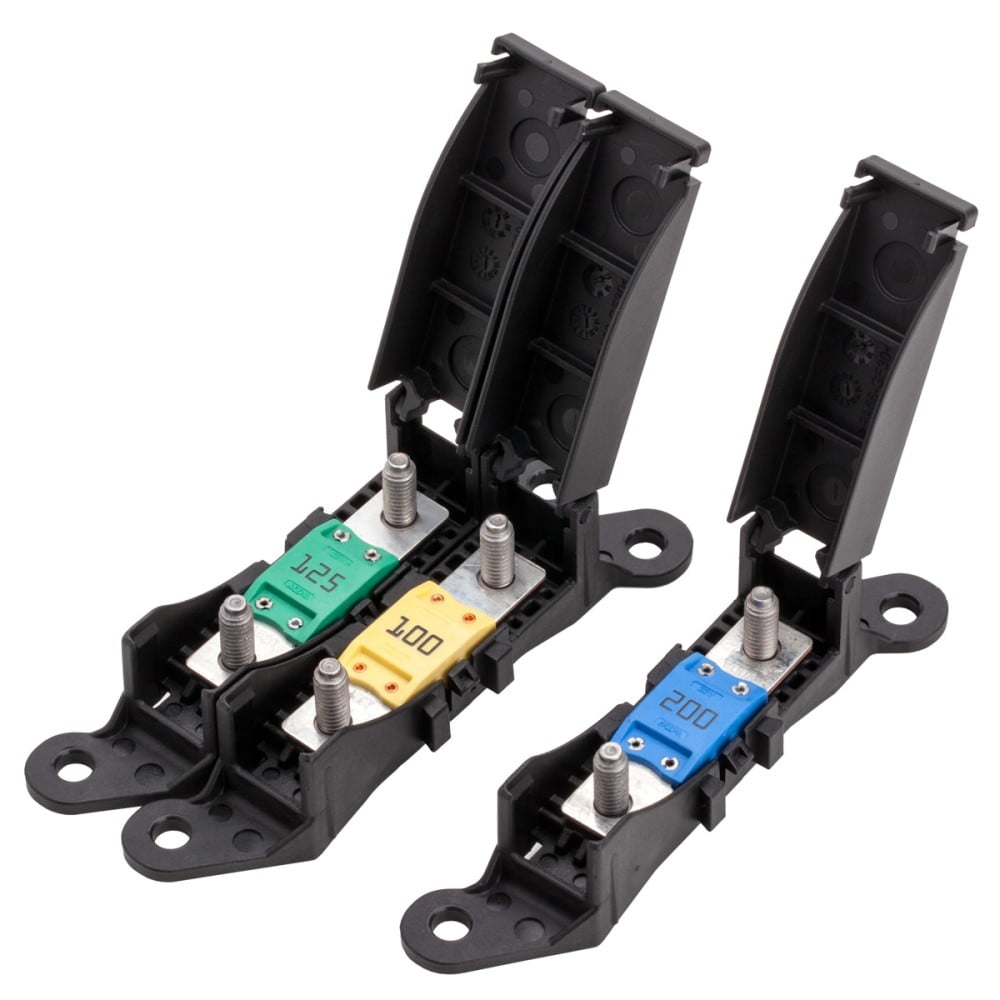

- Fuse holder can be ganged together.
- Overall height: 34.05mm
- Overall width: 45mm
- Overall length: 126mm
- Distance between mounting bolts: 109mm
- Mounting holes: 6.15mm
- Fuse mounting: Bolt down )
- Material: PA66 GF30
