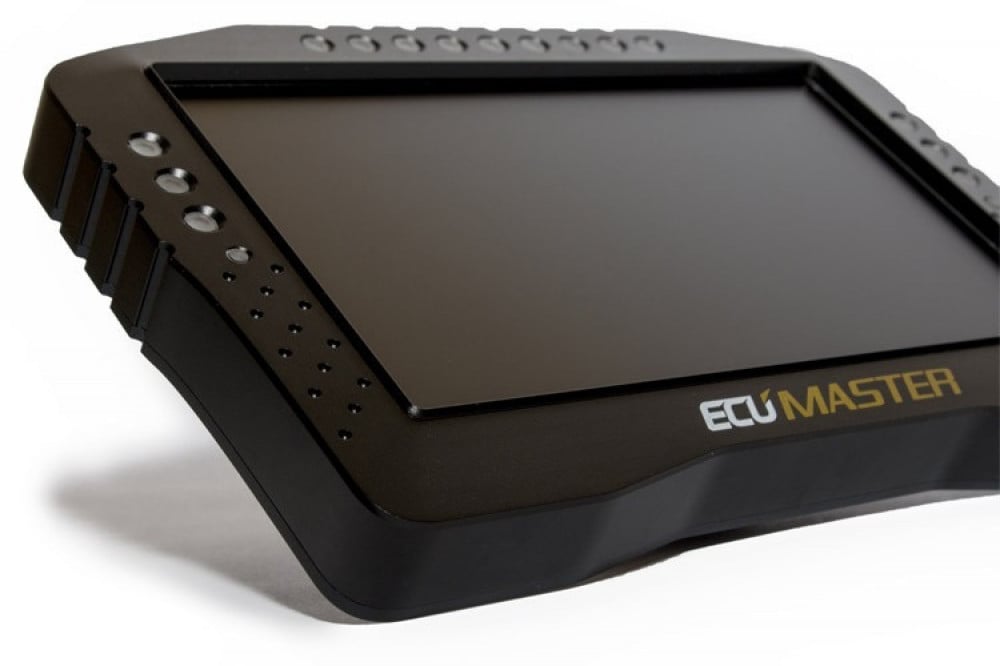

شاشة EcuMaster ADU 7 inch

Advanced Display Unit

We are proud to announce the new ECUMASTER Racing Dash family of products. We designed the ADU5 and ADU7 in response to market demand for a cost-effective dash display with logging capabilities. Our specific goal was to create a fully customizable, feature-rich, quality solution for competitive drivers. We consulted professional drivers and race engineers and designed the ADU to exceed their requirements.

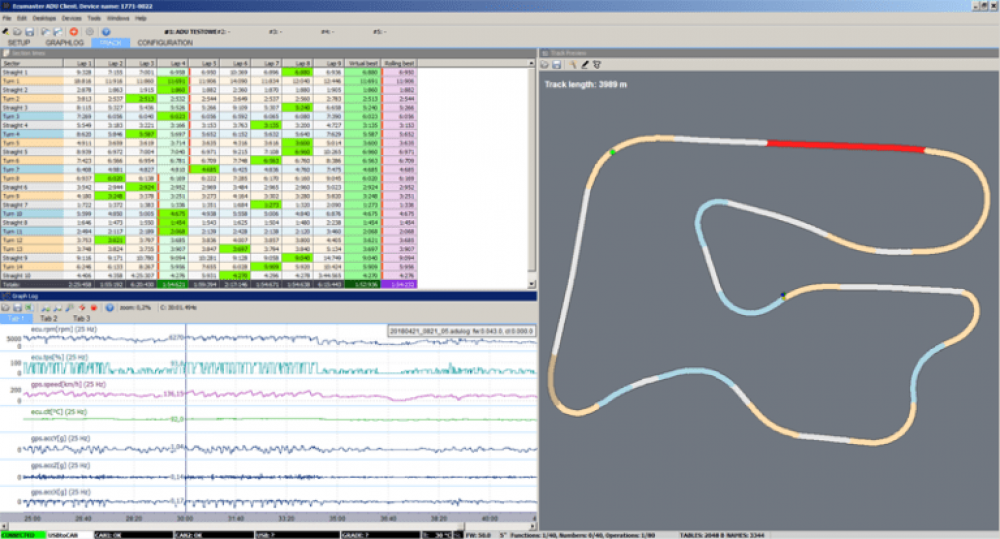

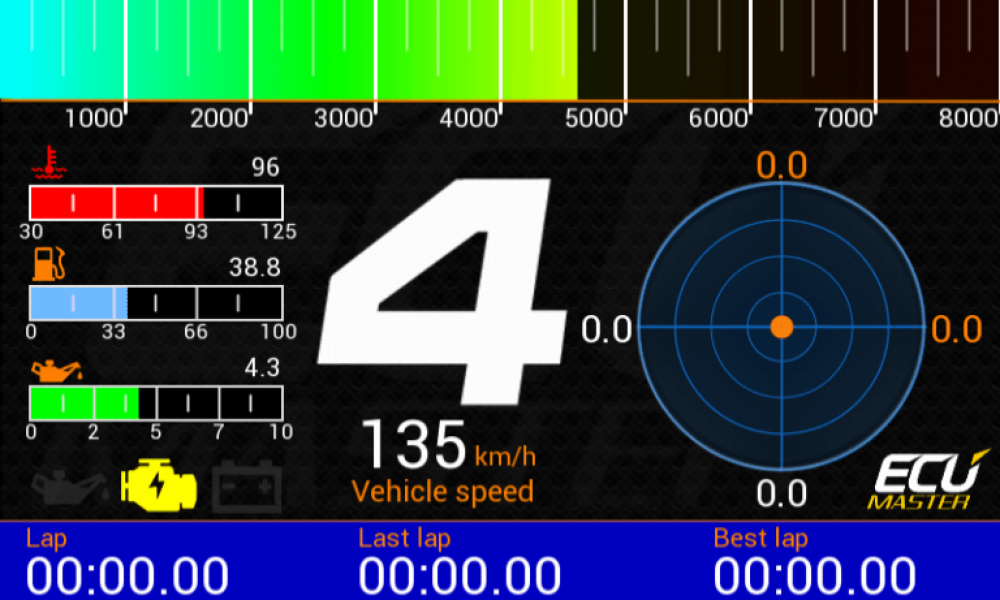

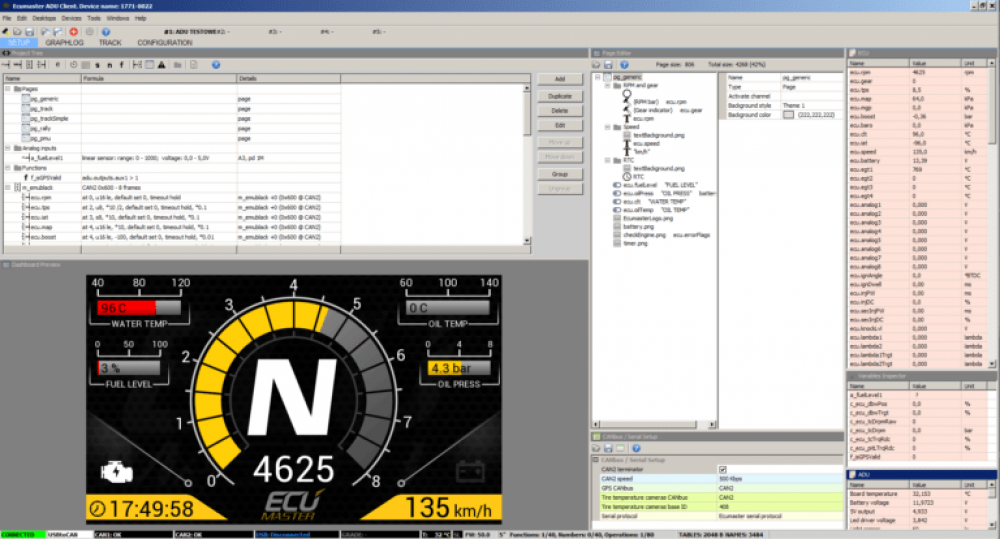

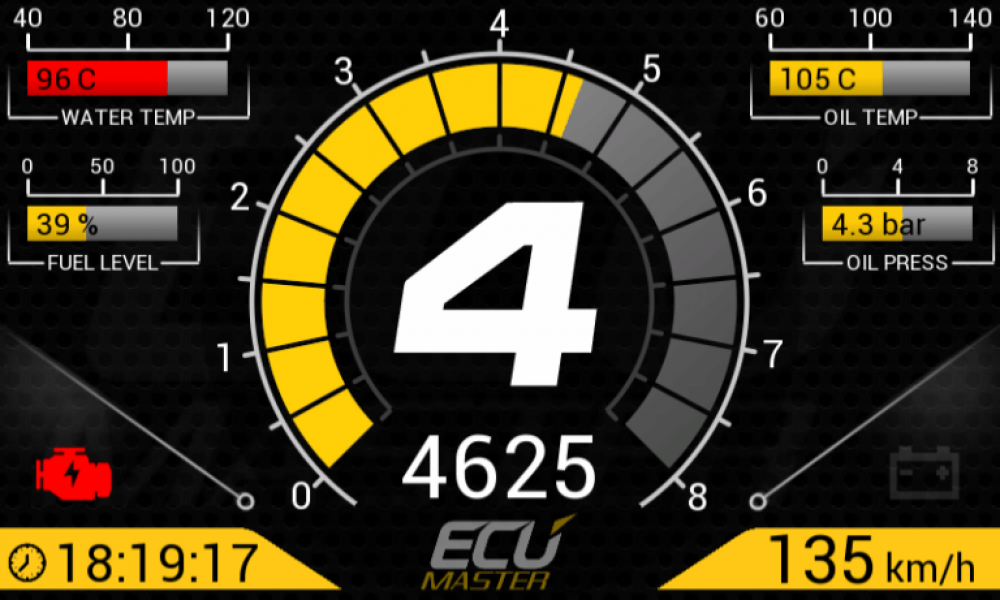

Above all, the ADU is designed to display all critical information in an easy to read manner, along with a comprehensive strategy for displaying alarms.

SPECIFICATION

GENERALTemperature rangeAECQ100 GRADE3 (-40 to +85˚C)Reverse battery protectionYes, internalOperating voltage6-22V, immunity to transients according to ISO 7637EnclosureRev.1 ->IP 60, custom CNC machined aluminumRev.2 ->IP 65, custom CNC machined aluminum (sealed)

ADU7″ AS ->IP 60, custom CNC machined aluminum

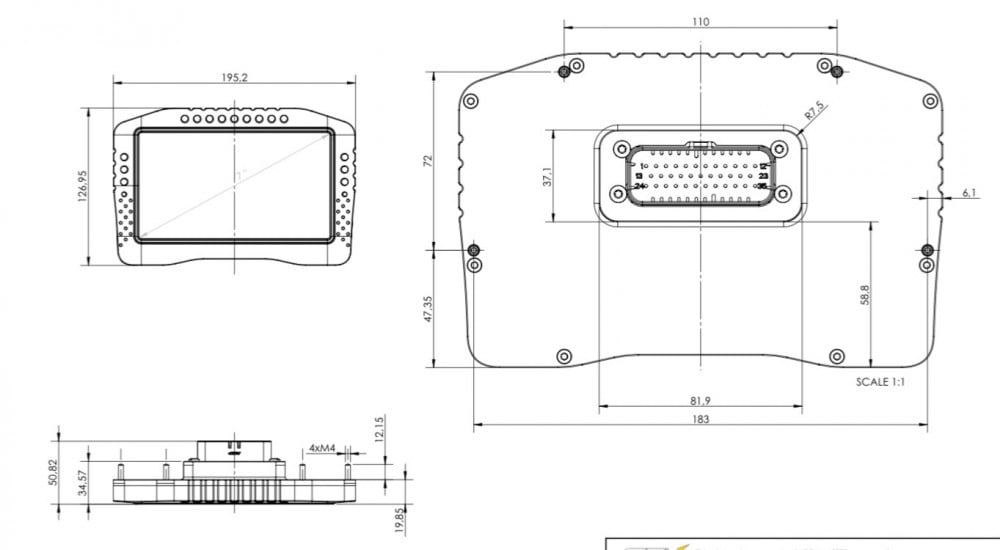

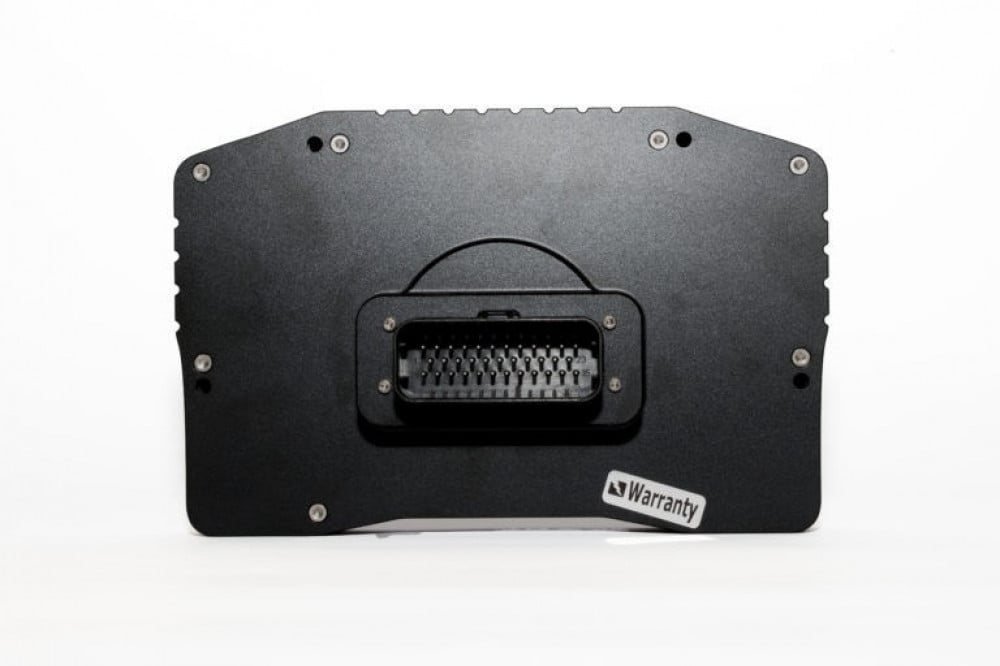

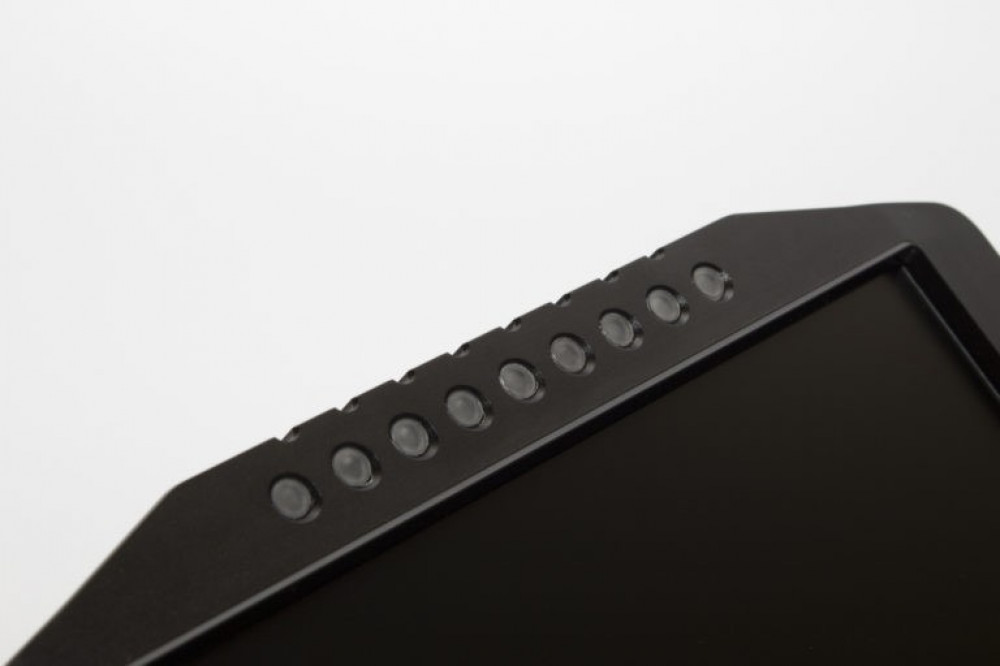

Connectors1 x 35 positions, AMP Automotive connectorPC communicationCAN BUS – Ecumaster interface, Peak or KvaserDisplay TypeTFT 800×480Brightness of display5″ – 600 cd/m2, 7″ – 1000 cd/m2INPUTS / OUTPUTSAnalogue inputs8 inputs, 10 bits, 0-5 V, software controlled pull-up/pull-down 10K resistor. All analogue inputs can be used as a switchesDigital inputs8 digital inputs, software controlled input sensitivity (VR, Hall), software controlled 4K7 pull-up resistors, used for engine speed sensors, Flex Fuel, wheel speeds, turbocharger shaft speed. All digital inputs can be used as switchesOutputs2 low side outputs (switch to ground), up to 2A, 1 analogue output (0-5V) 10 bits+5V OutputMonitored 5V output for powering external sensorsCOMMUNICATIONCAN Interface2 x CAN2.0 A/B, 250, 500, 1000 KbpsCAN streamsUser-definedSerial communicationRS232 Rx/Tx, AiM protocols, Ecumaster, Hondata Kpro, AutronicUSBUsed for logging to external USB memoryOTHERSLight Emitting Diodes15 ultra bright RGB LEDsAccelerometer/gyroscope3D accelerometer + 3D gyroscope for the analysis of vehicle dynamicsReal-time clockYes, battery poweredLight sensorYes, for automatic correction of brightnessTemperature sensorYes, for monitoring device temperature
