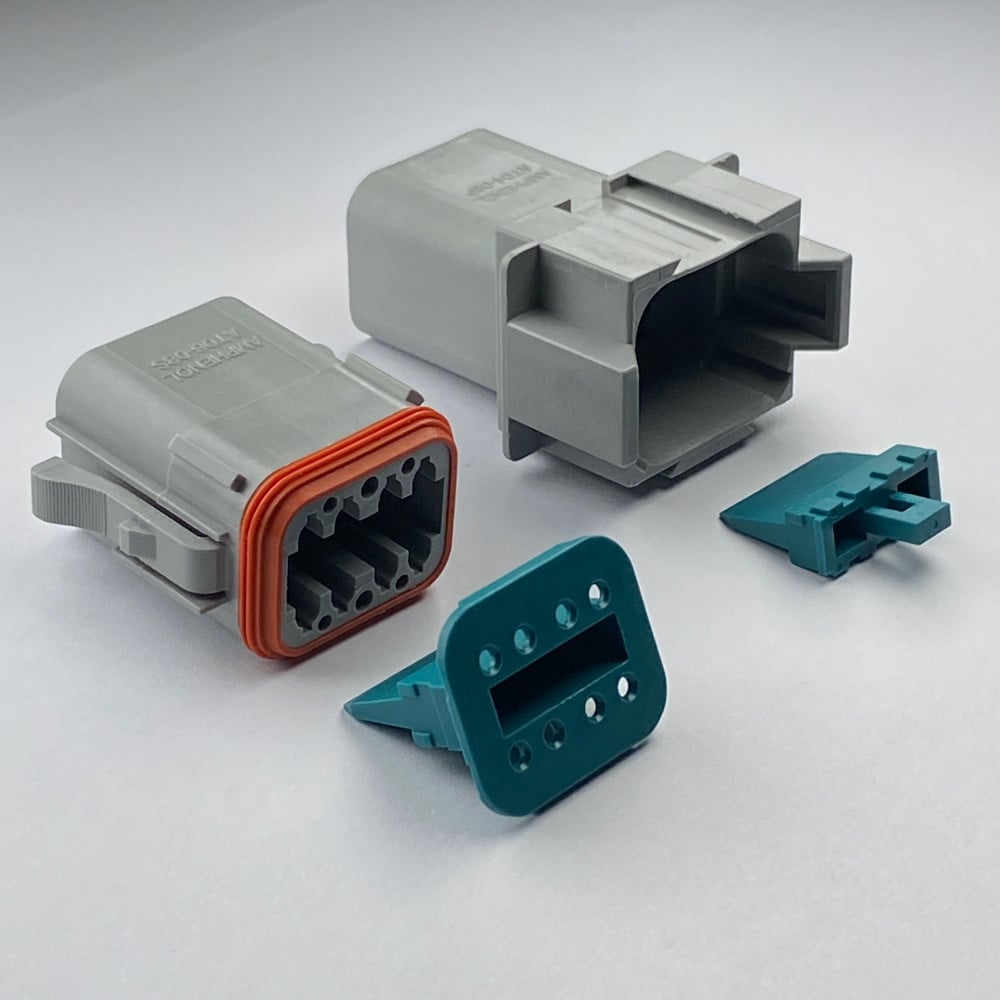

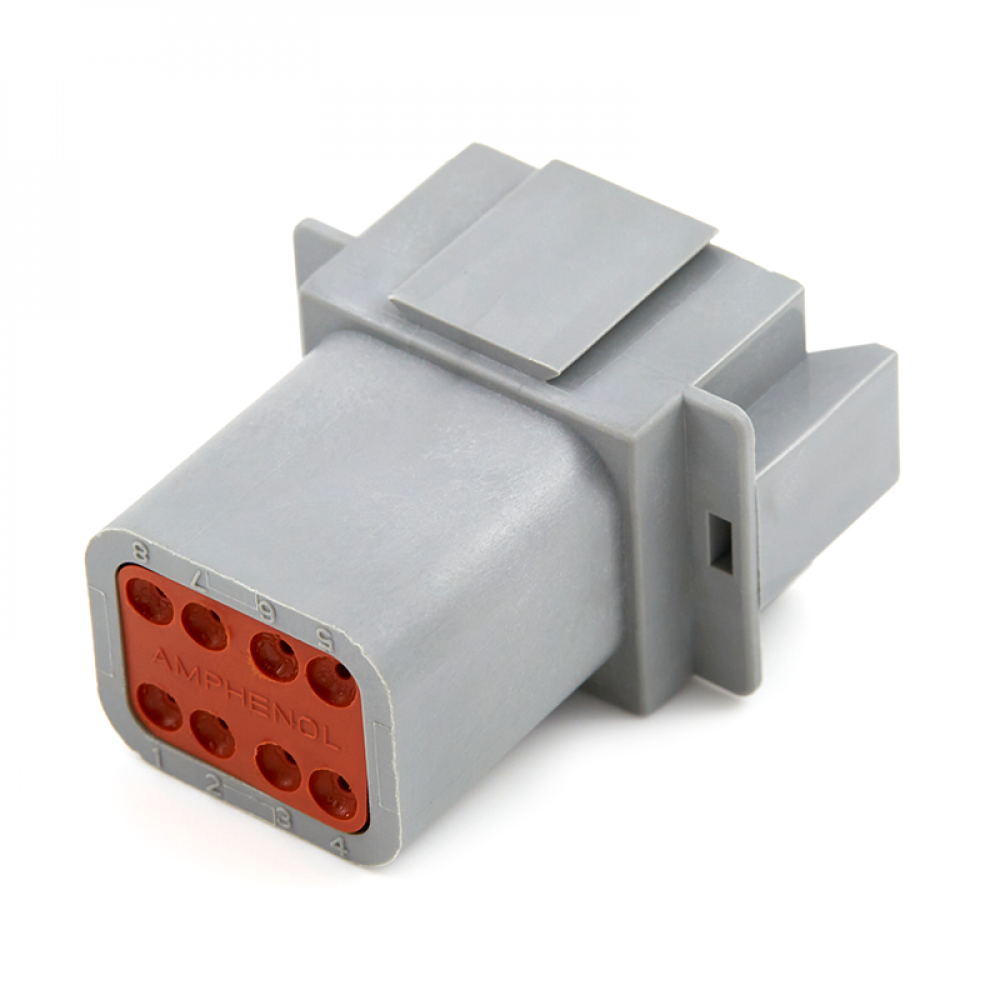

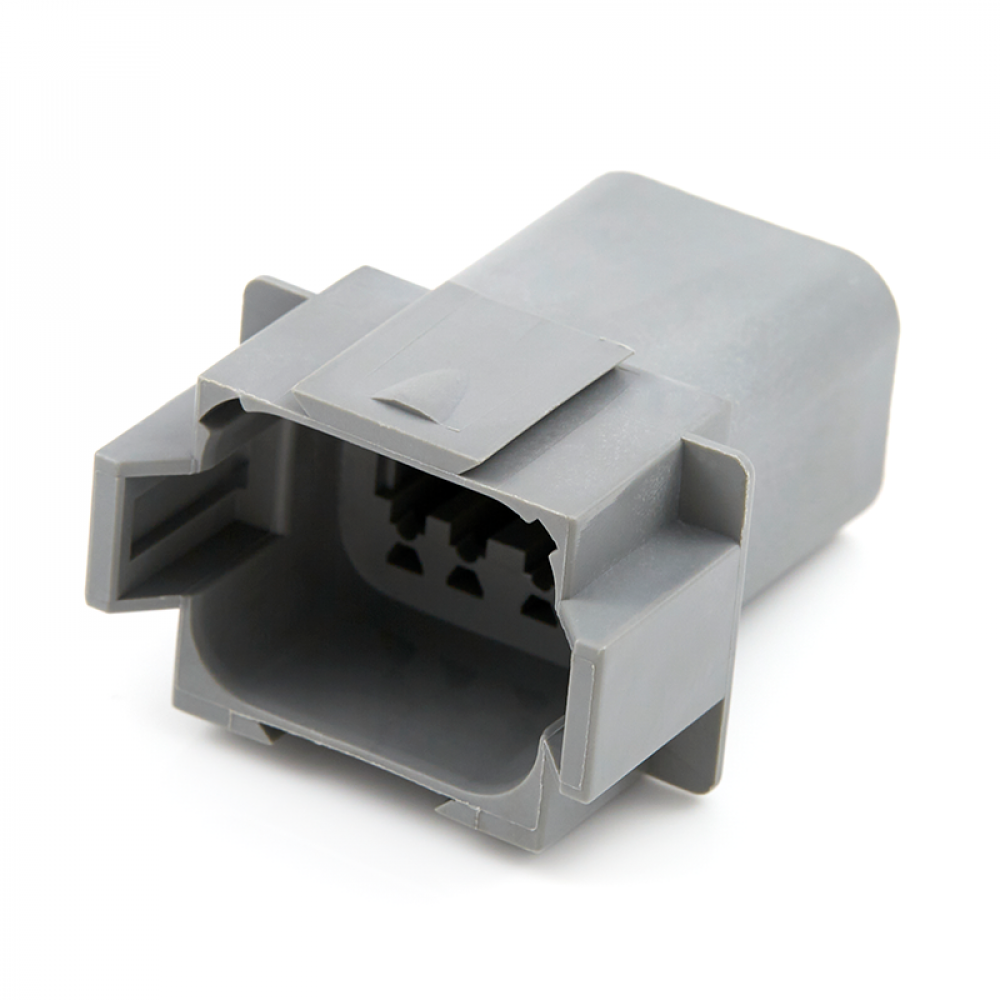

فيش دويتش دي تي 8 أطراف 13 امبير (أصلي) DT-8

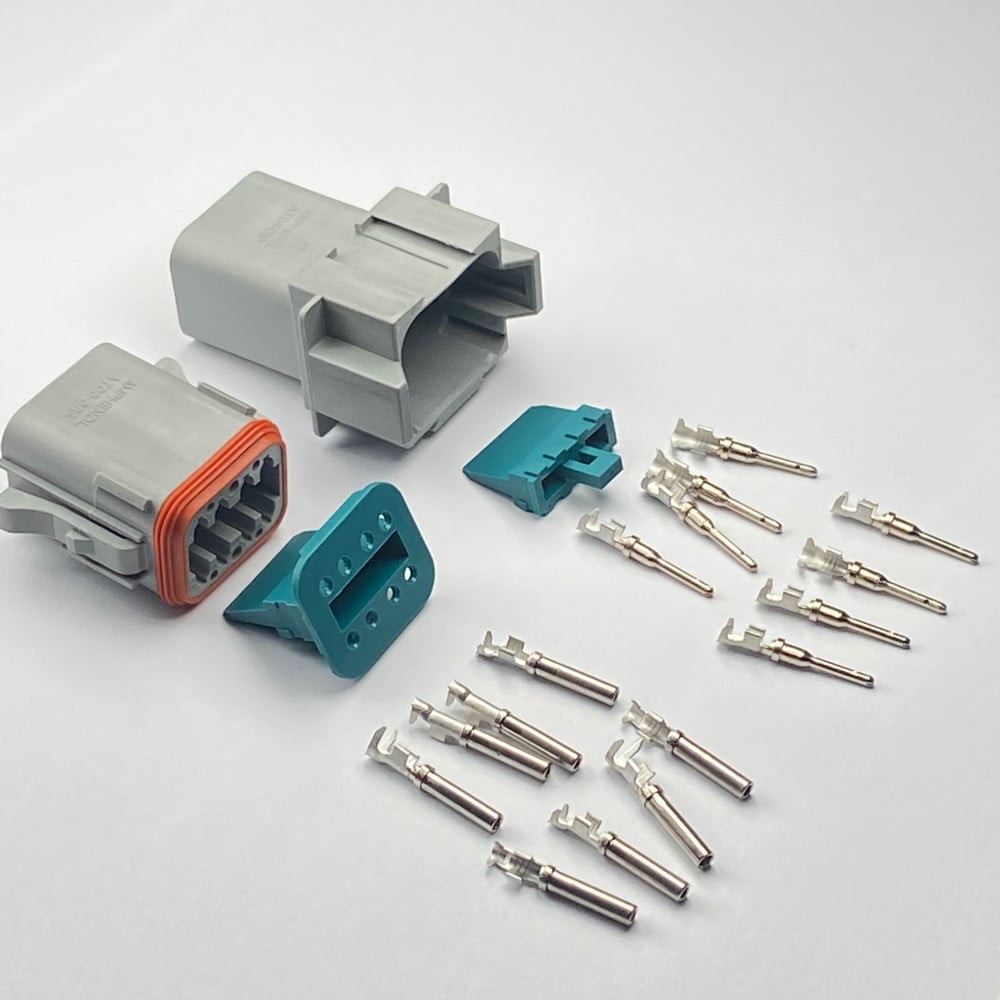

فيش دويتش دي تي 8 أطراف 13 امبير (طقم) DT-8

يشمل:

-افياش ذكر و انثى

-قفل افياش ذكر و انثى

-8 بنات ذكر و انثى

يناسب اضافة انارة LED و ظفاير الكويلات و المكونات متوسطة الجهد.

DEUTSCH DT connectors offer field proven reliability and rugged quality. The DT design strengths include optional flange mounting, multi-pin arrangements, and design flexibility. Thermoplastic housings offer a wide operating temperature range and silicone rear wire and interface seals allow the connectors to withstand conditions of extreme temperature and moisture.

• Accepts contact size 16 (13 amps)
• 14-20 AWG (2.50-0.50 mm2)
• 2, 3, 4, 6, 8, and 12 cavity arrangements
• In-line, flange, or PCB mount
• Rectangular, thermoplastic housing
• Integrated latch for mating
• Wedgelocks confirm contact alignment and retention
• Available accessories: Backshells, boots, dust caps, gaskets, mounting clips
